FDI Series – Delpet Dryers

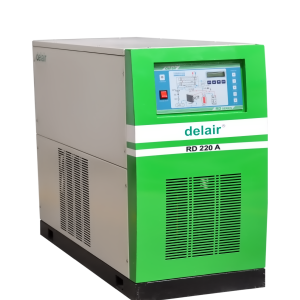

FDI series Delpet Dryer

FDI Series – Delpet Dryers

Overview

Compressed air is used to blow the bottles/containers to the desired shape and size. A major problem in compressed air systems is the presence of water, dust particles, oil (oils particles are introduced by lubricated air compressors) and solid contaminants which can adversely affect air quality.

Range

Capacity from 18 – 850 m3/hr (10.6 – 500 cfm)

How Does it Works

How does it work?

Compressed air is widely used in most pneumatic applications in PET/ Plastics industry. Compressed air is used to blow the bottles/containers to the desired shape and size. A major problem in compressed air systems is the presence of water, dust particles, oil (oils particles are introduced by lubricated air compressors) and solid contaminants which can adversely affect air quality. Moisture in compressed air may lead to the following problems :

  • Loss of clarity i.e. clouding of plastic bottles/containers
  • Loss of strength of plastic bottles/containers
  • Contamination of plastic resin
  • Internal bubbles or pockmarks in the bottles/containers

Pneumatic processes where Compressed Air Dryer is a must

• Blowing
• Forming
• Conveying plastics pellets
• Cleaning
• Clamping
• Injection molding
• Mold Press Powering
• Tool Powering

Key Features / Benefits

  • Available in 17 standard models
  • Capacities from 10.6 cfm to 500 cfm
  • Microprocessor based delsmart Colour led card to readout dew point, operating status and faults indication
  • Provides pressure dew points range to 3-4°C
  • Unique, proprietary, foamed in Heat Exchanger
  • Out performs other Dryers
  • Certified and reliable performance
  • Compact design

OPTIONAL FEATURES

  • Filter and total dryer bypass line with valves
  • Special Delair Filters for removal of water, oil mists, oil vapour and dust particles with electronically operated drain valves
  • Explosion proof controls for offshore application

STD. WORKING PARAMETERS

  • Pressure: 25, 40 & 60 kg/cm2(g)
  • Air Inlet Temperature: 45°C
  • Ambient Temperature: 45°C
  • Water Pressure: 3-4 kg/cm2(g)
  • Water Inlet Temperature: 32°C

Technical Specification

Refrigeration Dryer – FDI Series – Delpet Dryers


Range

Capacity from 18 – 850 m3/hr (10.6 – 500 cfm)
